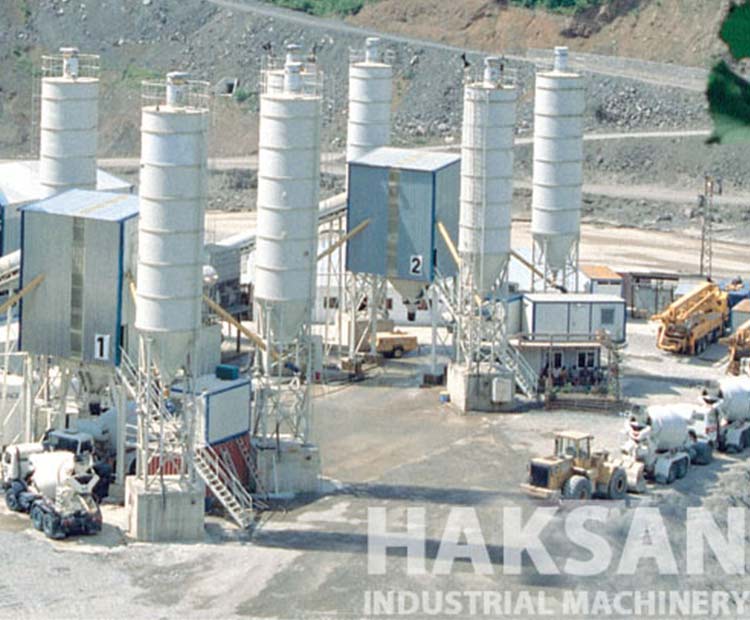

HB-135W Stationary Concrete Batching Plant

Specification Value Unit
Compacted Concrete Output 135 m3/hr
Batch Count 45 cycle/hr
Mixer Capacity (compacted) 3,33 m3
Mixer Capacity 5,0 m3
Mixer Motor Power 2x55 kW
Aggregate Compartments Qty. 4-6 Quantity
Aggregate Compartment Capacity 30-50 m3
Aggregate Weighing Conveyor 1.000x15.630 mm
Mixer Feeding Conveyor 1.000x31.500 mm
Aggregate Weighing 6.600 kg
Cement Weighing 1.750 kg
Water Weighing 1.000 lt
Additives Weighing 40 kg
Cement Screw Conveyor 273x11.500 mm
Cement Silo 2-4 Quantity
Cement Silo Capacity 75-100-150-200-250 ton



Why HB-135W Stationary Concrete Batching Plant?

  • Prompt Reply For Service And Spare Parts
  • Reduced Power Consumption On Account Of Short
  • Top Quality Components
  • Hardwearing Mixer Linings
  • Manufactured For Heavy Duty Operations
  • Optional Cladding Available
